Hotclass Logic Triple Cuba Plana Refrigerated Display – Used

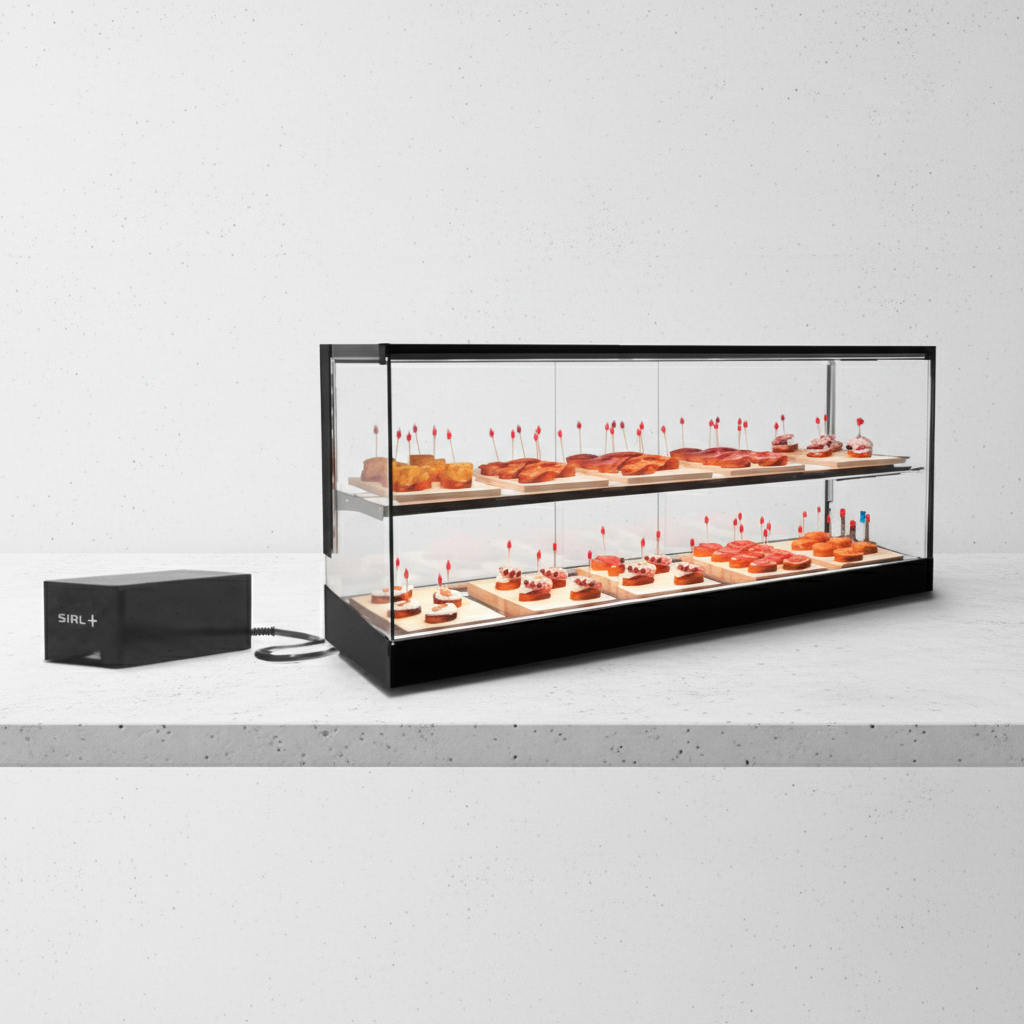

HOTCLASS Logic Triple Cuba Plana Refrigerated Display Case: Cool Storage at +2°C/+6°C with Remote Unit
The HOTCLASS Logic Triple Cuba Plana with remote unit is a compact professional refrigerated display case for fresh food display and preservation in the foodservice environment. Available as demonstration unit in excellent condition, it maintains a food zone temperature between +2°C and +6°C, ideal for gastronomy, dairy products, antipasti and cold cuts at the counter. AISI 304 stainless steel tank, silent hermetic compressor Danfoss with dual turbo ventilated condenser, CE certification. Compact dimensions (1190 × 465 × 395 mm) and counter installation without structural work.
Key features
- Pressed AISI 304 stainless steel well with rounded corners and integrated drain outlet for quick cleaning
- Tempered glass resistant to impact, scratches, acids and professional detergents
- Silent hermetic Danfoss compressor with dual turbo-ventilated condenser keeps temperature at +2°C/+6°C
- Remote condensing unit lets you place the condenser outside the sales area, reducing noise
- Cuba Plana display surface with rear sliding doors that can be removed without interrupting visibility
Structure and Materials: HACCP Hygiene Compliance
The tank is moulded in a single body of AISI 304 stainless steel, with rounded corners and integrated drain hole—geometry designed for rapid cleaning and HACCP procedure compliance. The single display plane Cuba Plana ensures uniform presentation and facilitates stocking via rear sliding removable doors, with no interruption to public visibility.
The structure combines stainless steel and tempered glass, resistant to impacts, scratches, acids and professional detergents, guaranteeing durability in high-intensity use environments.
Refrigeration System: Danfoss Compressor and Digital Control
The silent hermetic Danfoss compressor with dual turbo ventilated condenser maintains constant thermal stability in the food zone (+2°C / +6°C), essential for safe storage of fresh foods displayed at the counter. The electronic thermostat with digital display allows continuous temperature monitoring, with sensors positioned to avoid accidental contact.
The remote unit allows the condensing unit to be located outside the sales area, reducing heat loss in the room and lowering perceived noise: standard solution for foodservice professionals where environmental comfort is a priority.
Ease of Use and Installation
Compact counter-top model with adjustable feet: requires no fixed installation or structural work. Integrated LED lighting enhances product presentation. Single-phase power supply 230 V / 0.15 A, standard in any commercial setting.
Technical Specifications
| Dimensions (W × D × H) | 1190 × 465 × 395 mm |
| Tank type | Cuba Plana |
| Tank depth | 15 mm |
| Storage temperature | +2°C / +6°C |
| Tank material | AISI 304 stainless steel |
| Compressor | Danfoss, silent hermetic |
| Condenser | Dual turbo ventilated |
| Thermostat | Digital with display |
| Lighting | Integrated LED |
| Shelves | 1 |
| Power supply | 230 V / 0.15 A single-phase |
| Certification | CE |
| Condition | Demonstration unit—excellent condition |
⚠️ Warning: product sold without original packaging. Motor disconnected and without refrigerant gas at time of delivery.
